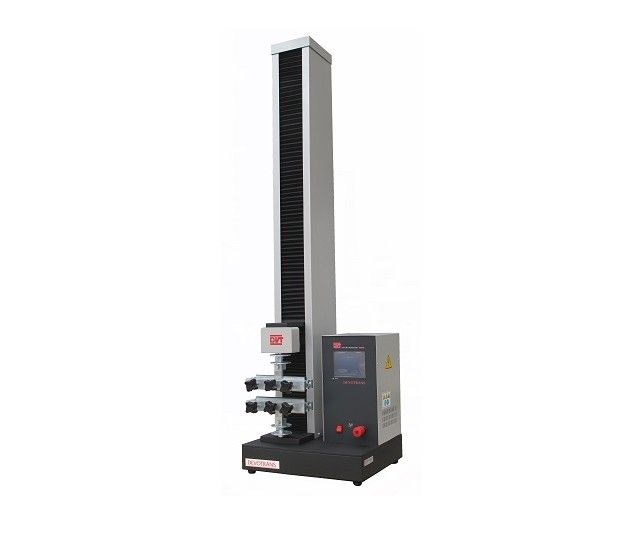

Tensile, compression test machine DVT BP D NU
Tensile, compression test machine DVT BP D NU single-column model used for capacities up to 2 kN
Tensile, compression test machine DVT BP D NU single-column model used for capacities up to 2 kN
TECHNICAL INFORMATION
- Stopping, depending on the Breakout/Fracture or distance.
- Maintenance-free, solid and reliable structure.
- Touch screen.
- Rapid return to the starting point.
- Emergency stop button.
- 3-column and single-screw system, monoblock.
- Sensitivity is ±0,5%.
- In tensile tests, the direction of the movement is upwards.
- Operation Voltage is: 220VAC, 50 Hz.
- Power consumption : max. 400 W.
- Speed option between : 0.001 — 500 mm/min.
- Specimen diameter (width) is maximum 180 mm.
- Movement precision: 0,001 mm.
- Kg, Newton etc. options.
- Turkish and English language options.
OPTIONAL ADD-ONS
- Custom made software.
- Computer and printer connections.
- Special jaws and additional units.
- Extensometer.
- Warm-cold ambient test chambers.
- Metal or plexiglas safety cage.
APPROXIMATE DIMENSIONS AND WEIGHT
- Width : 460 mm
- Depth : 380 mm
- Height : 155 mm
- Wight : 80 Kg
